DYNOJET >> Power Vision 3 - Programmatore Flash (B)

DYNOJET’S LATEST POWER VISION IS THE 3RD INCARNATION OF THE WORLD’S MOST POWERFUL FLASH TUNING SYSTEM.
DESIGNED TO COVER MORE MODELS THAN EVER BEFORE, YOU CAN NOW UNLOCK THE SECRETS THAT ARE HIDING IN YOUR ECM.

Nobody offers more! The Power Vision from Dynojet has more pre-configured tunes, extensive calibration access for custom tuning, industry exclusive features, and world class support. For ease of use, all supported models can be flashed via the diagnostic port and many are able to be read in the same manner.

• FLASH ECU VIA VEHICLE DIAGNOSTIC CONNECTOR NO NEED TO OPEN OR REMOVE ECU FROM THE VEHICLE
• READ ORIGINAL TUNE VIA DIAGNOSTIC CONNECTOR, OR VIRTUAL READ WITH SERVER DOWNLOAD
• DISPLAY AND / OR LOG VEHICLE DATA CHANNELS IN REAL-TIME
• “HINDSIGHT” FEATURE CAPTURES LAST 2 MINUTES OF DATA WITH THE TOUCH OF A BUTTON
• WEATHER RESISTANT FOR USE IN ALL CONDITIONS
• VIVID COLOR DISPLAY WITH HIGH CONTRAST RATIO VIEWABLE IN DIRECT SUNLIGHT

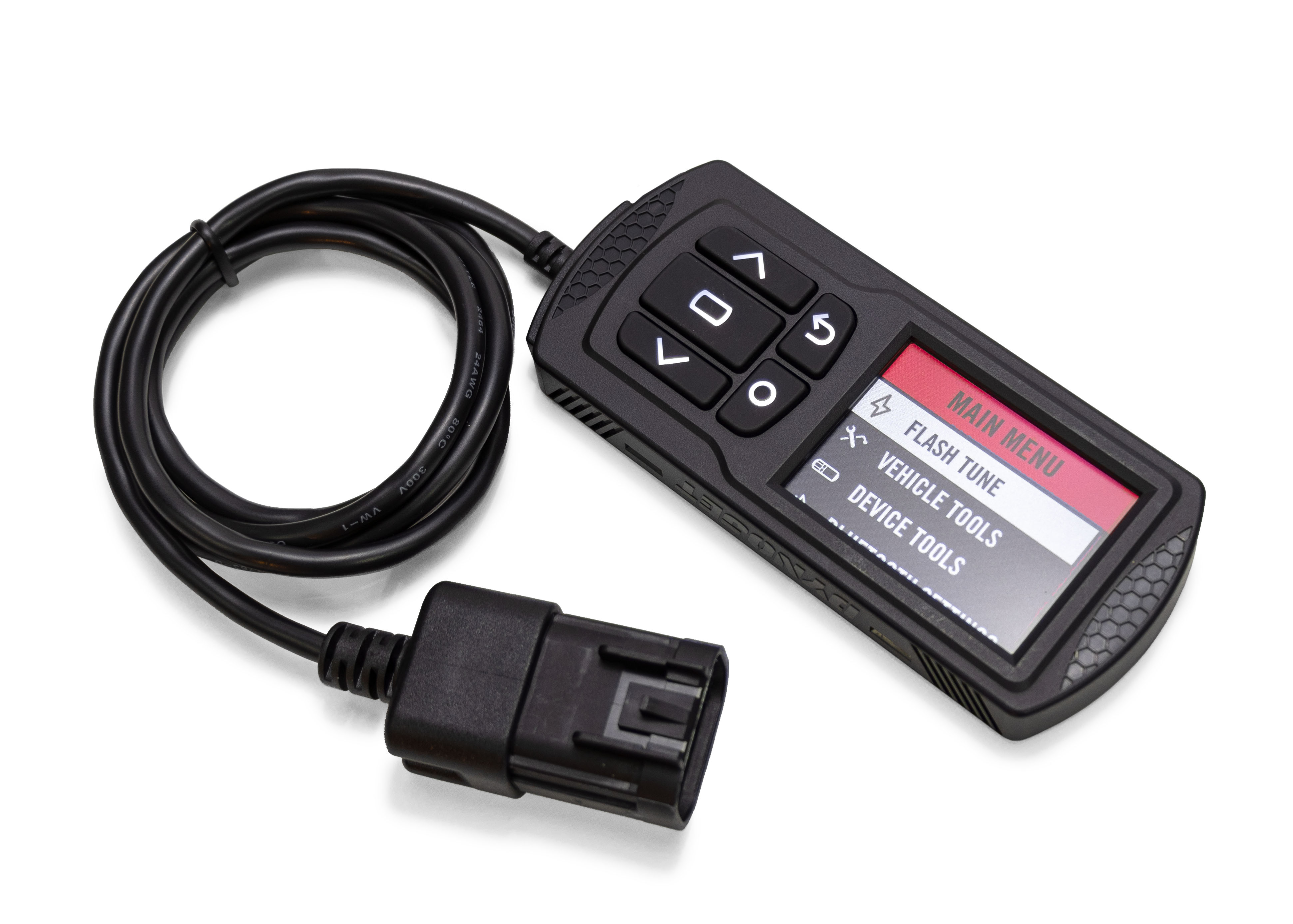

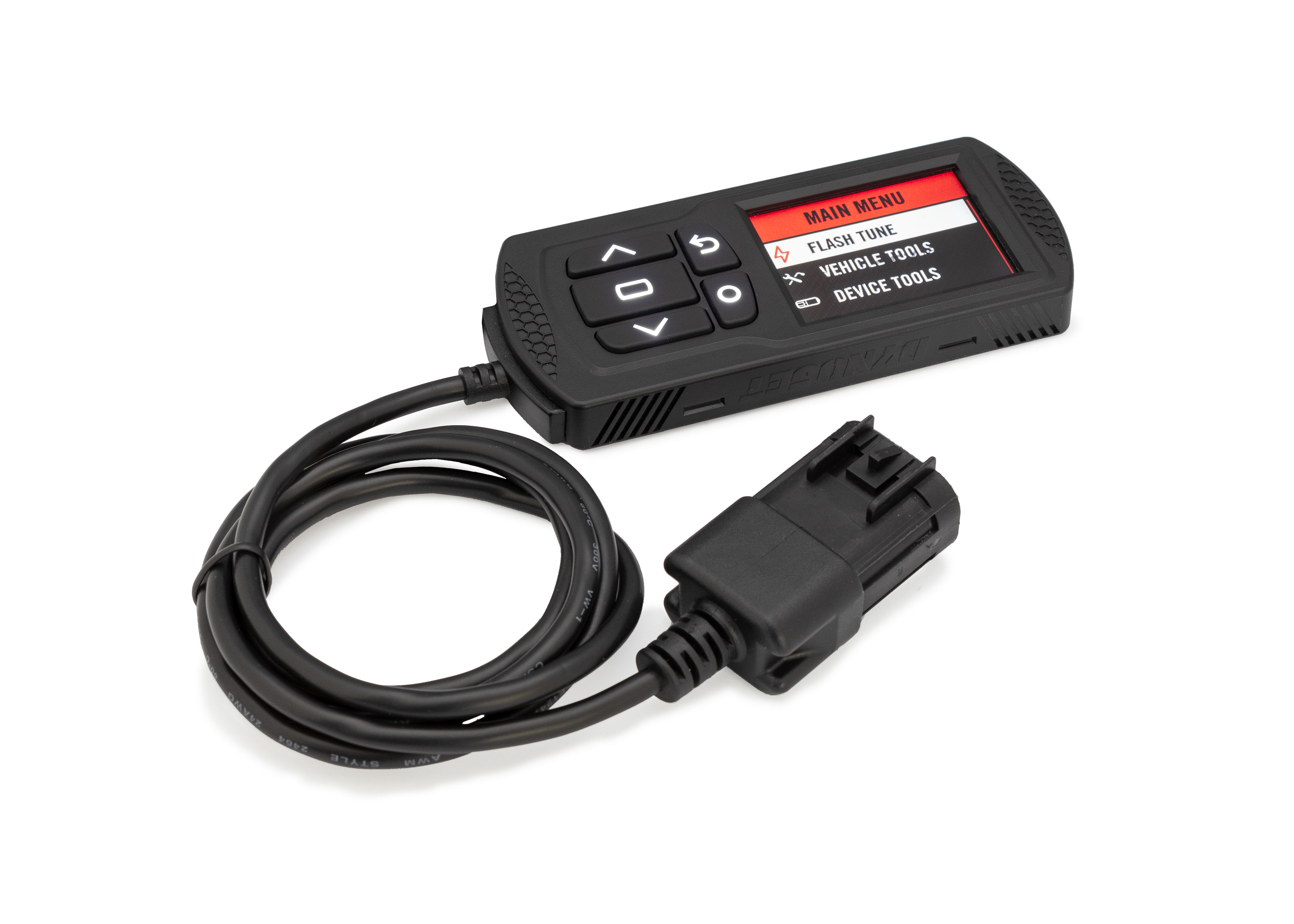

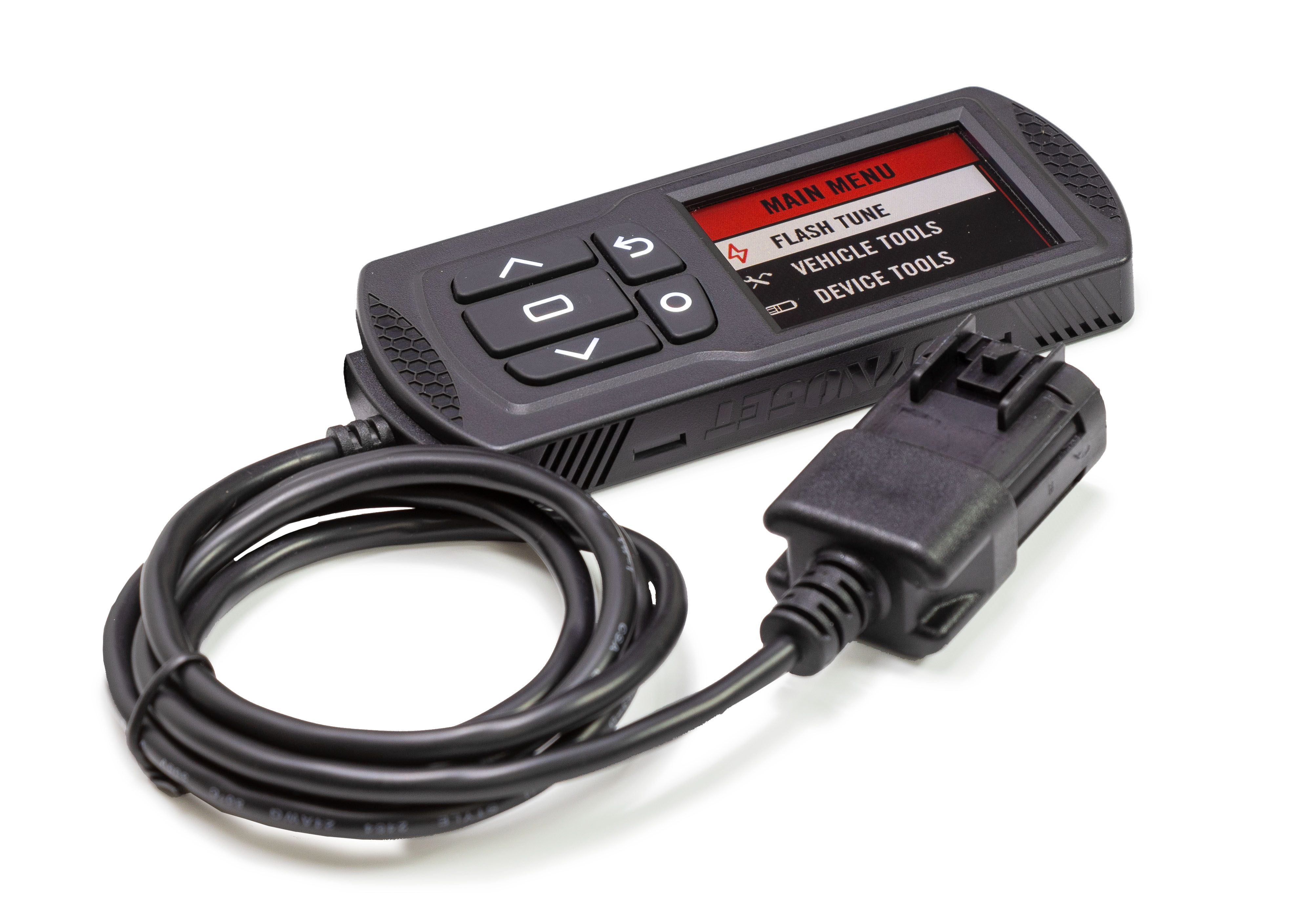

HIGH SPEED ARM CORTEX CPU
BLUETOOTH LE SUPPORT
2.4” TFT LCD DISPLAY, FULL
COLOR WITH 240X320 RESOLUTION
32 MB FILE DRIVE
USB MINI-B
2.12”H X 4.37”L X 0.5”W
(54MM X 111MM X 13MM)

C3 TUNING SOFTWARE

• TUNE EDITOR OFFERS FULL SUPPORT WITH EXPANSIVE CALIBRATION DEFINITIONS TO ALLOW COMPREHENSIVE AND PRECISE CONTROL
• POWERFUL COMPARE FEATURE TO IDENTIFY DIFFERENCES AND SIMILARITIES
• VALUE FILE FEATURE ALLOWS YOU TO SAVE SPECIFIC CALIBRATION CHANGES
• LIVE CELL TRACING OR SYNCHRONIZED OFFLINE CELL TRACING DURING DATA LOG REVIEW
• HELPFUL TUNING PARAMETER DESCRIPTIONS
• EXTREMELY FLEXIBLE TO TAILOR THE ENVIRONMENT TO THE USERS PREFERENCE
• TUNE LAB ALLOWS USES TO USE PRE-DEVELOPED SCRIPTS TO CORRECT TUNING VARIABLES LIKE VOLUMETRIC EFFICIENCY TABLES WINPEP 8 DATA CENTER
• RUNS SIMULTANEOUSLY AND SYNCHRONIZES WITH C3 TO SHOW CELL TRACER IN TUNING TABLES WINPEP 8 DYNO CONTROL
• FOR DYNOJET DYNO OWNERS WITH DYNOWARE RT ELECTRONICS, STREAM REAL-TIME DATA FROM SUPPORTED VEHICLES DURING DYNO RUNS SESSIONS
• CONTROL DYNO RUN SESSIONS TO MAXIMIZE EFFICIENCY, ESPECIALLY WHEN USING IN CONJUNCTION WITH TUNE LAB PERFORMANCE TUNE FEATURES
• SUPPORT FOR POPULAR AFTERMARKET PERFORMANCE PARTS
• FUELING REVISED FOR MAXIMUM POWER AND TORQUE
• SPARK TIMING OPTIMIZED FOR PUMP OR RACE GAS
• REV & SPEED LIMITS RAISED
• TORQUE LIMITING FUNCTIONS REDUCED OR ELIMINATED
• REVISED DRIVE-BY-WIRE THROTTLE PROFILES

LIFE IN THE FLASH LANE
